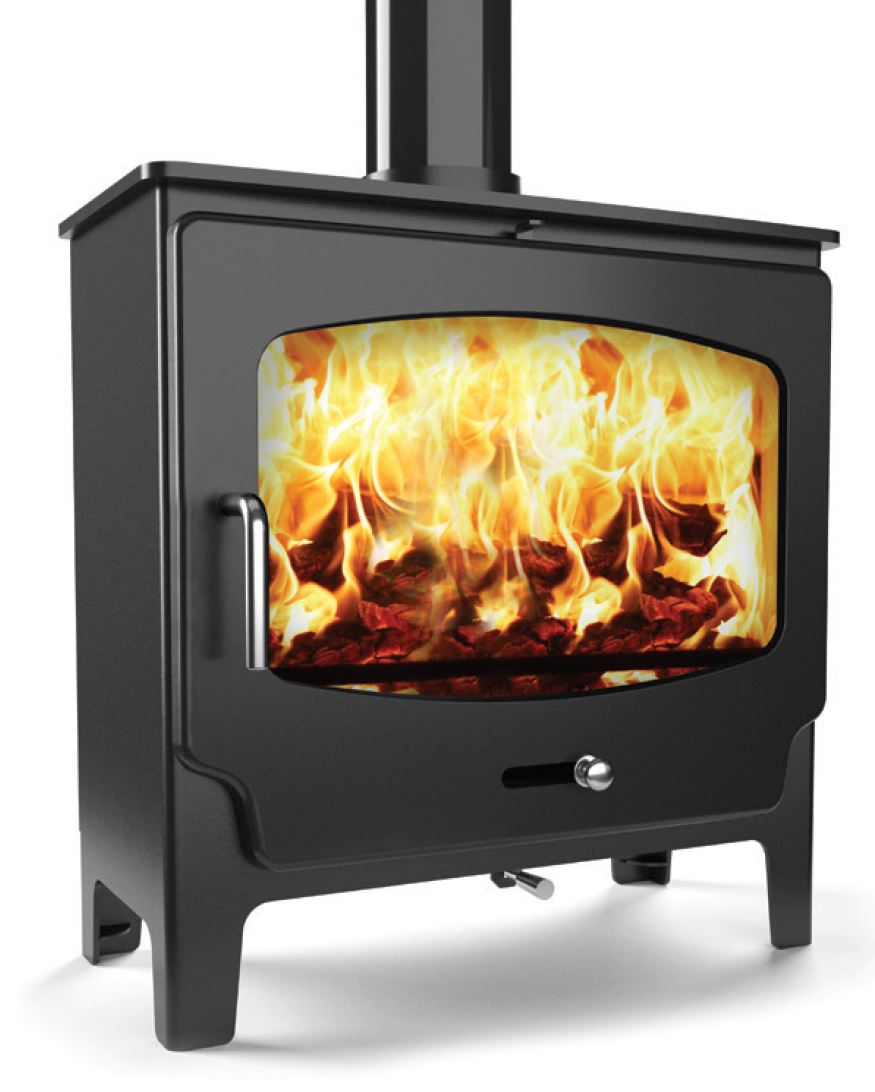

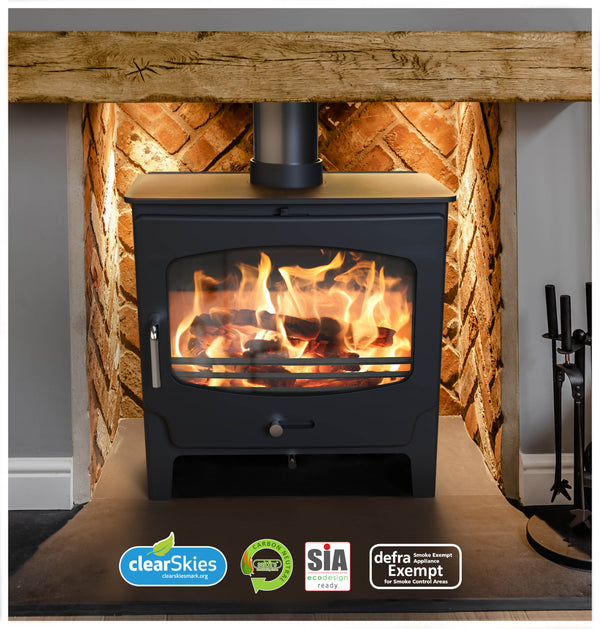

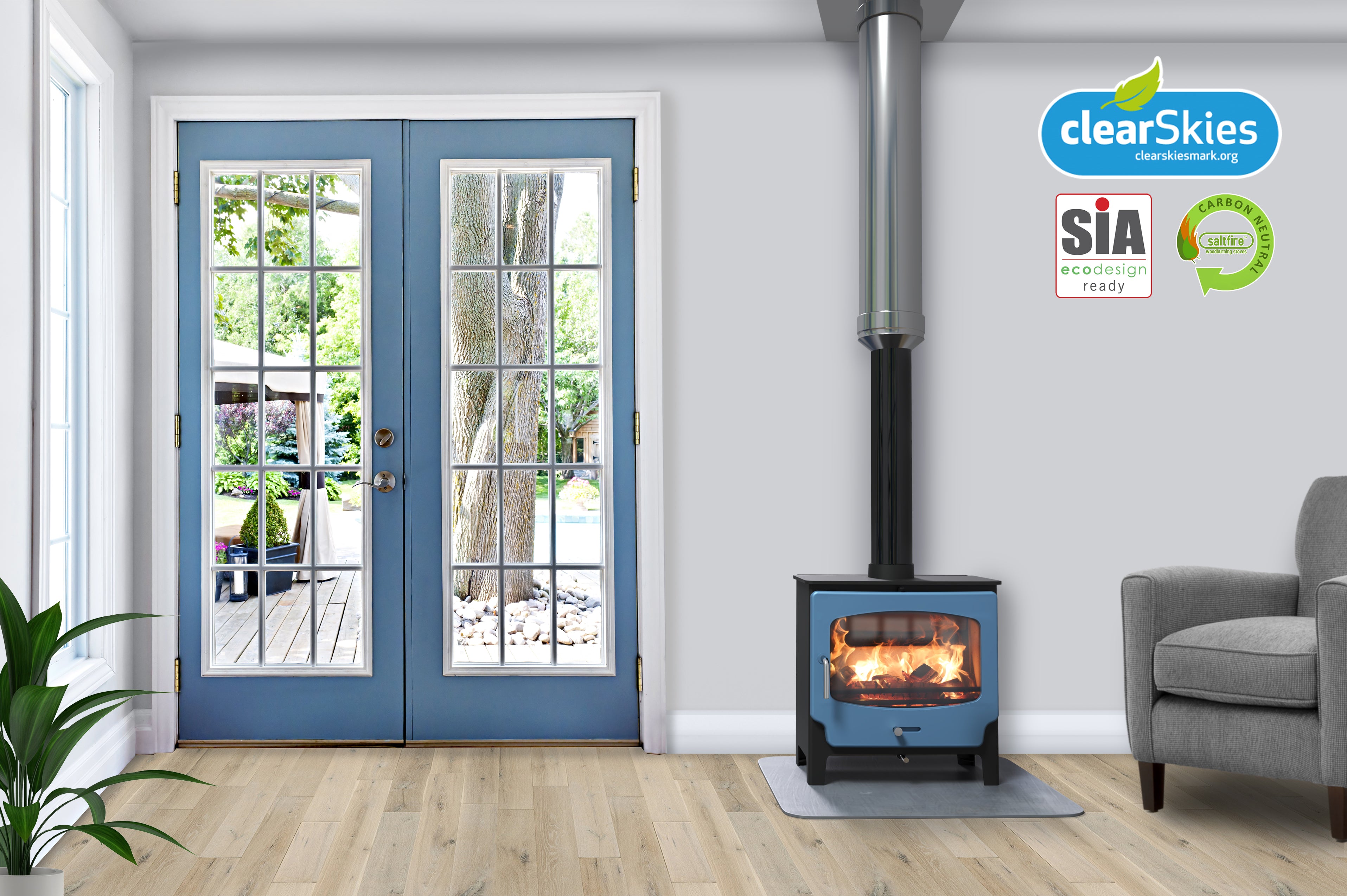

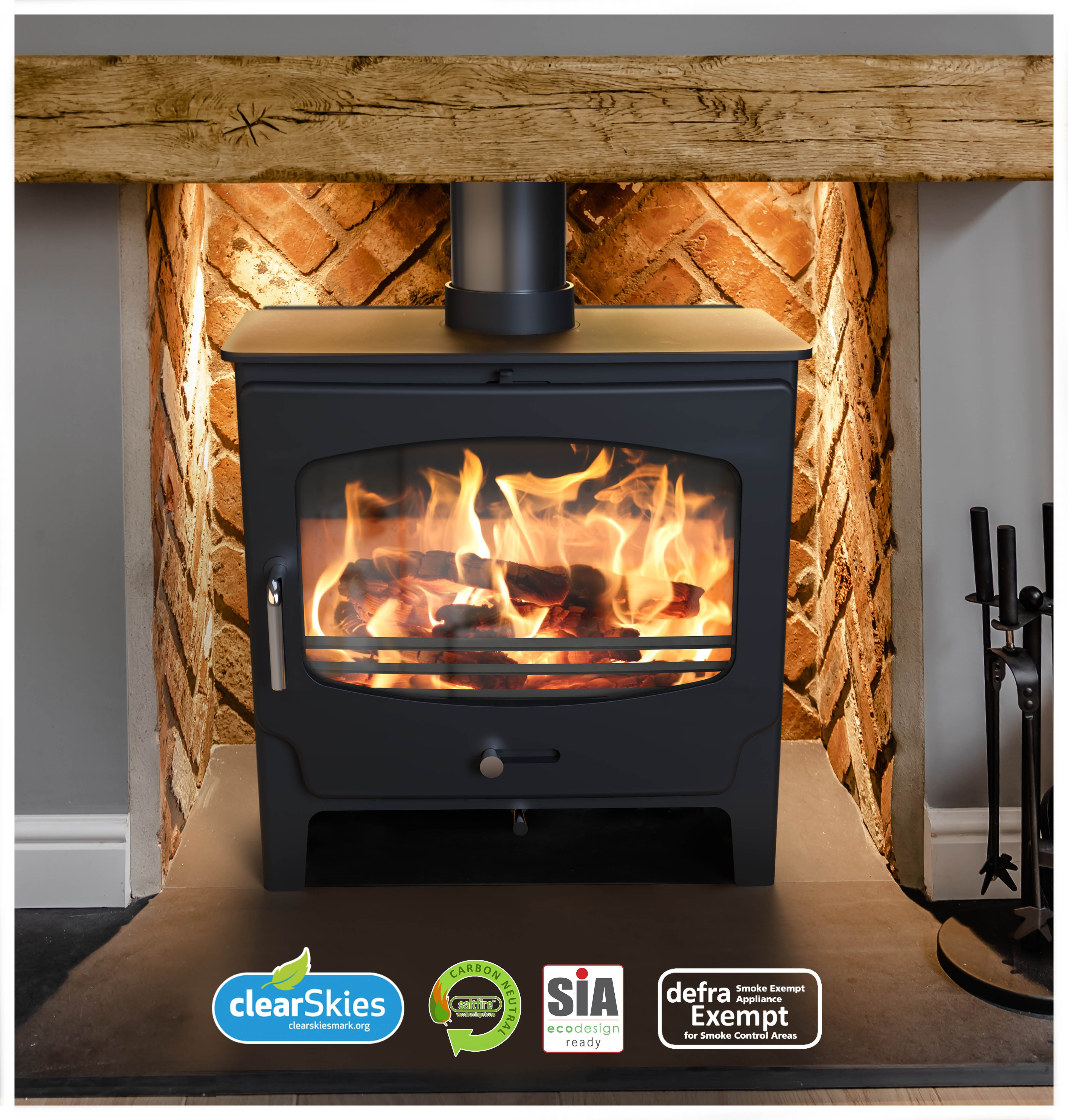

ST-X Wide: A Powerful Widescreen Multi-Fuel Stove

The ST-X Wide is a sleek and modern widescreen version of the popular ST-X range, delivering an impressive 5kW nominal heat output while maintaining a slimline depth.

Designed for both style and efficiency, it features a built-in heatshield to reduce clearance to combustibles, making it a versatile choice for a variety of installations.

This mid-sized multi-fuel stove is crafted from a precision-welded thick steel body with a durable cast iron door and thermo-refractory firebrick linings, ensuring outstanding heat retention and longevity. Its extra-wide firebox allows for larger logs and a greater range of heat output, giving you flexibility in how you heat your space.

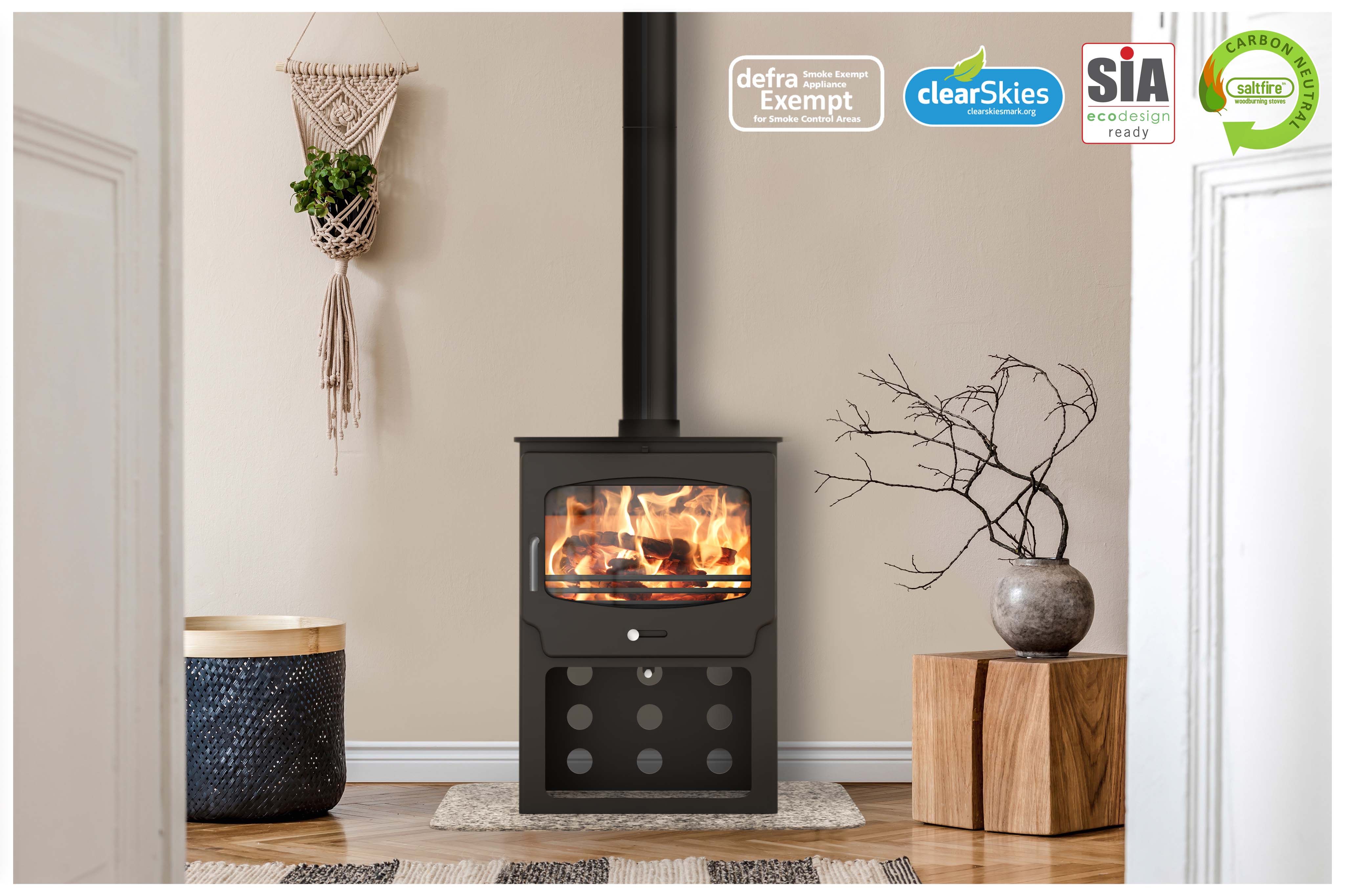

Eco-Friendly & DEFRA Approved

Already EcoDesign 2022 compliant, the ST-X Wide is engineered for minimal emissions and high efficiency (79%), making it an environmentally friendly heating solution. It exceeds DEFRA's strict clean-air standards, meaning it can be legally used in all UK smoke control zones.

Effortless Operation & Stunning Flame Views

Designed with simple, user-friendly controls, the ST-X Wide offers a hassle-free heating experience. The large clear-view glass window enhanced by an air-wash system provides stunning views of the flames, while the advanced after-burner system creates a mesmerising fire pattern.

Multi-Fuel Versatility & Easy Maintenance

The ST-X Wide is a multi-fuel stove, capable of burning both wood logs and smokeless coal with high efficiency. Ash from coal falls through the grate into an easy-to-remove ash pan, making cleaning simple.

Premium Quality & Ready to Install

Finished in a durable black high-temperature paint sourced from the USA, the ST-X Wide features Schott-brand thermo-ceramic glass from Germany for superior clarity and heat resistance. It comes fully assembled and ready to install, complete with a high-temperature glove for safe operation.

With both top and rear 5" (125mm) flue outlets, the ST-X Wide can be easily connected to a 5"  flue liner or twinwall flue system, offering flexibility for different installation setups.

Upgrade your home with the ST-X Wide, a stylish, efficient, and eco-friendly heating solution designed to deliver warmth and ambiance for years to come.

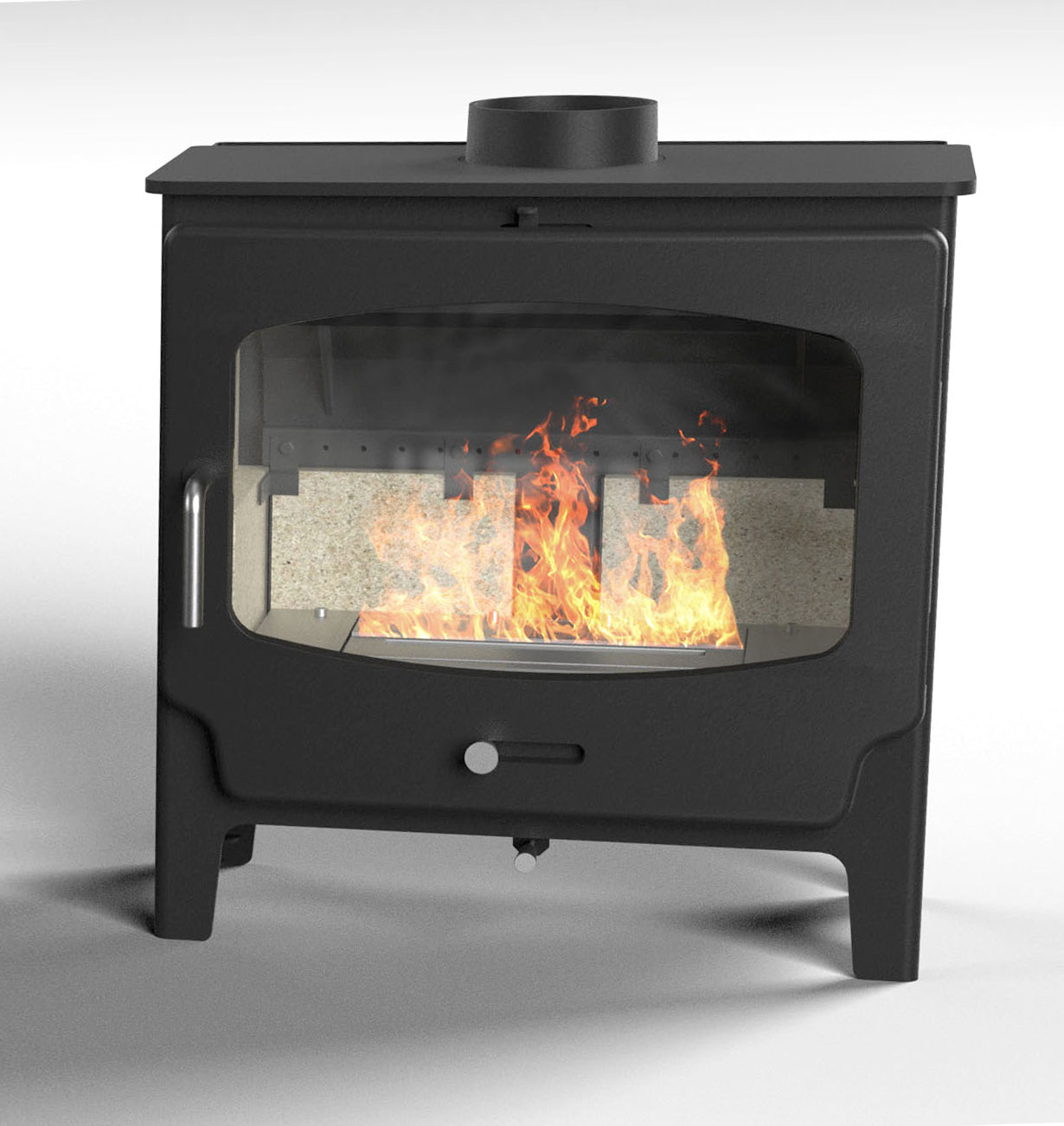

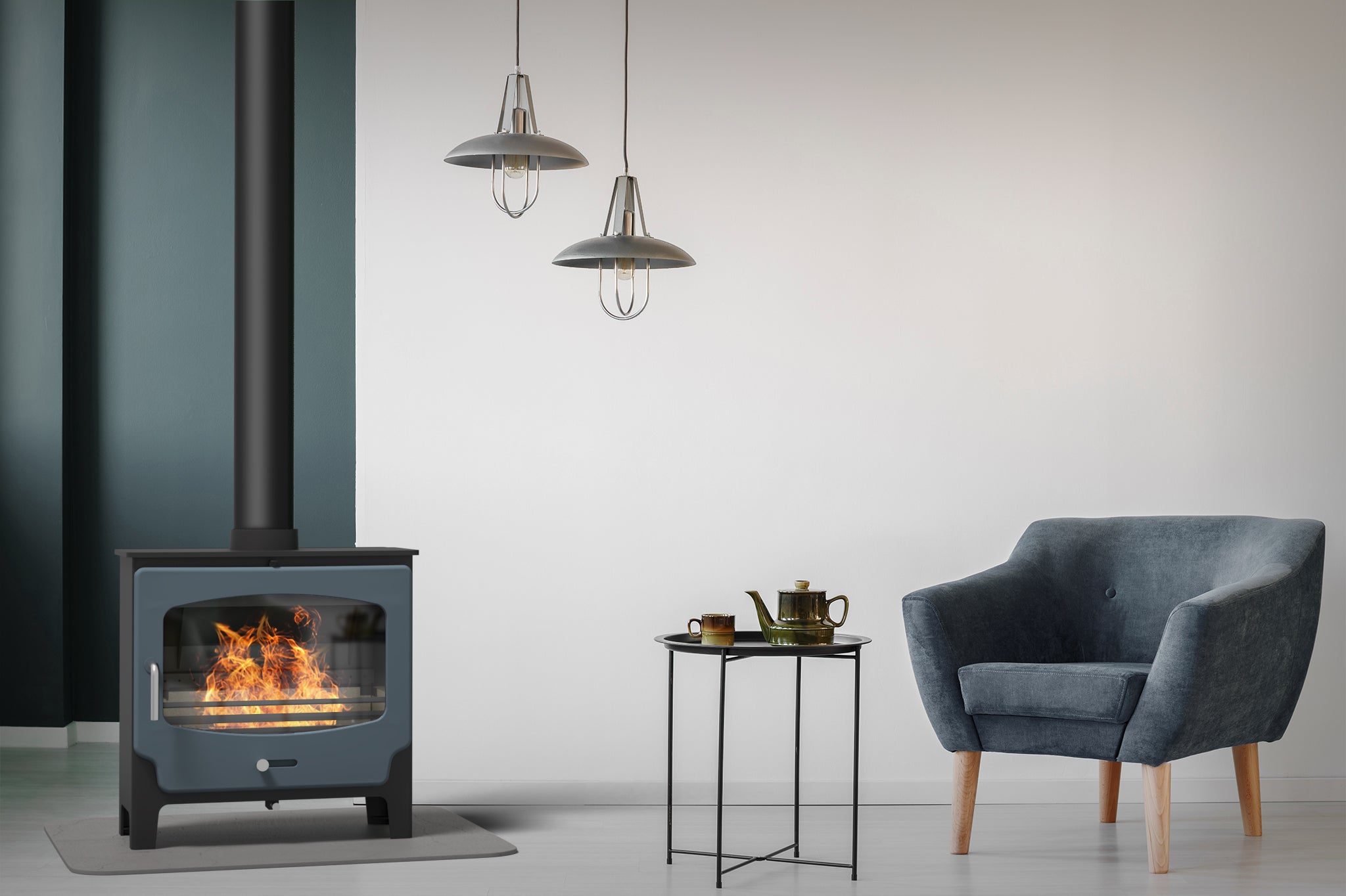

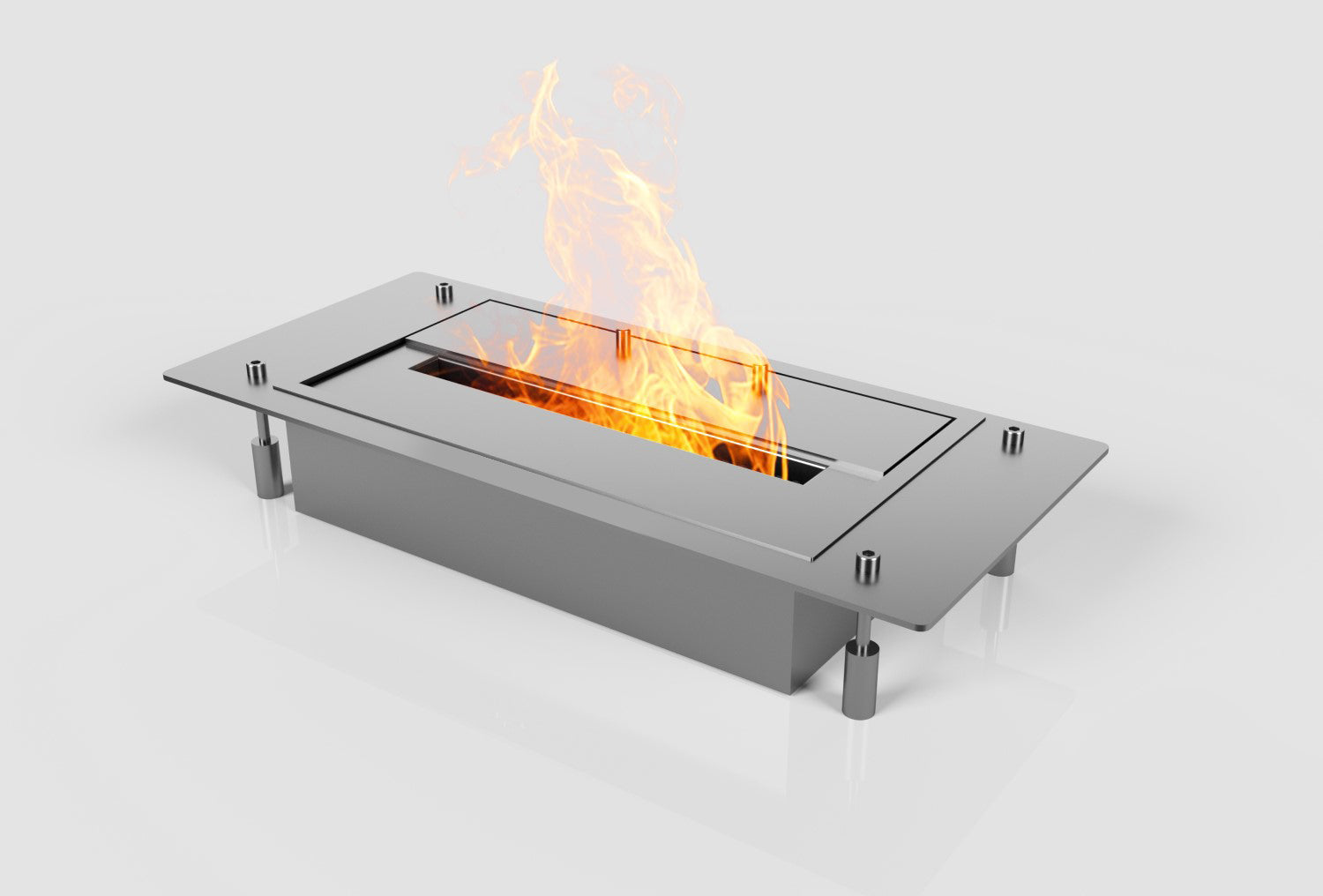

The Bioethanol burner tray can easily be lifted in/out of the stove without any tools required. When the burner tray is removed it can be used outside the stove e.g. out on your patio on summer evenings. With the tray removed the stove becomes the standard wood/multifuel stove so can be used with solid fuel (subject to a suitable chimney connection).

Special Features

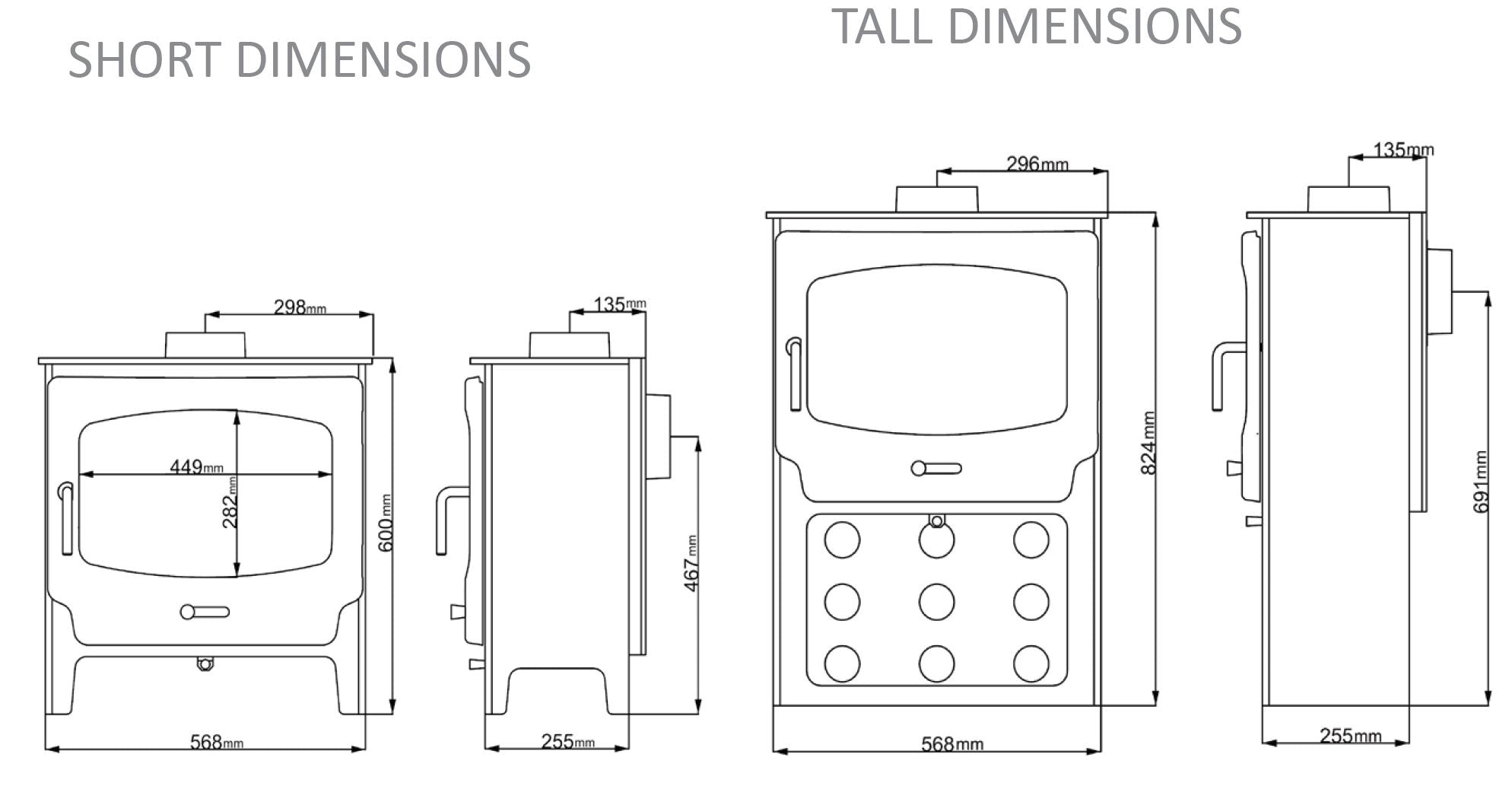

Specification

• Heat output: 5 kW

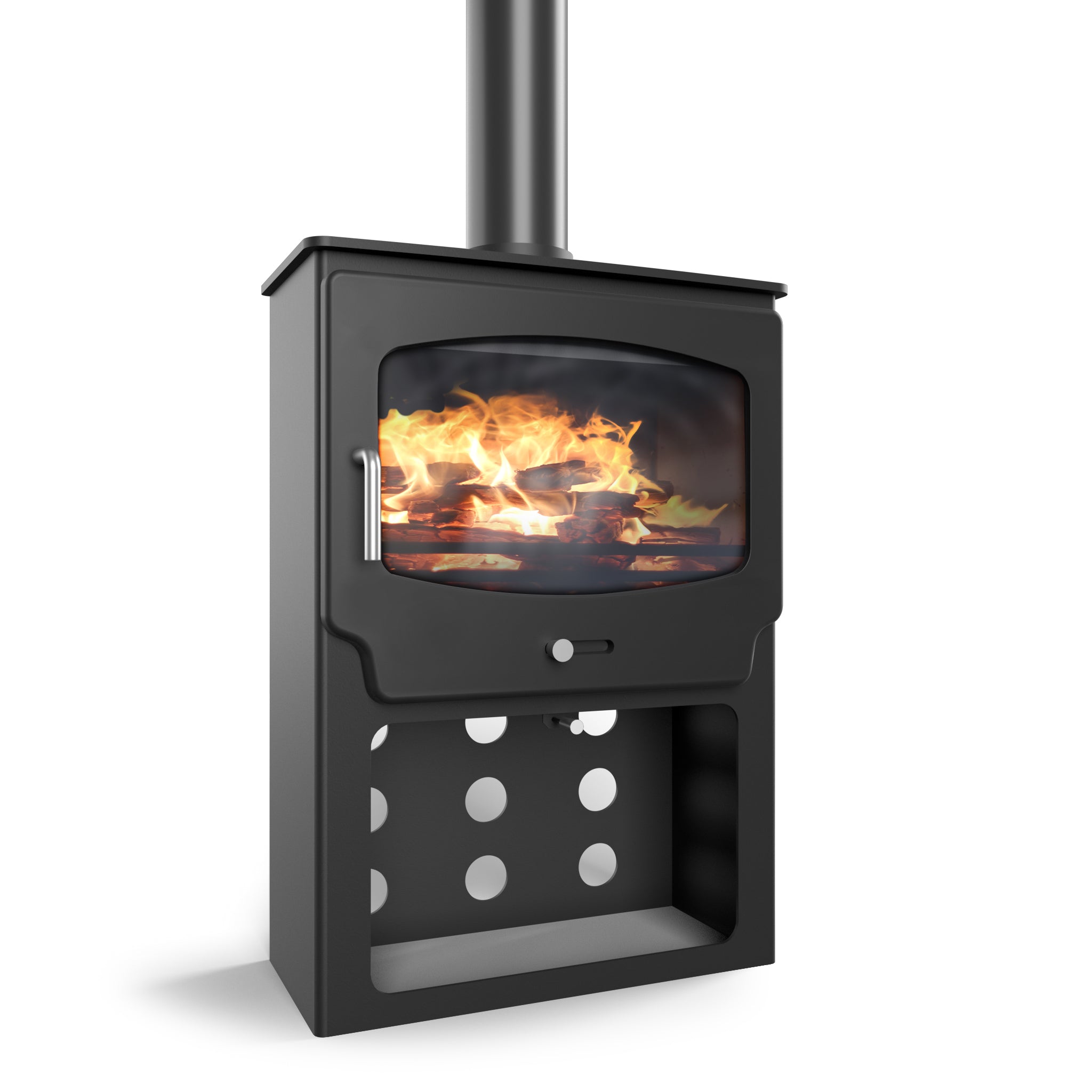

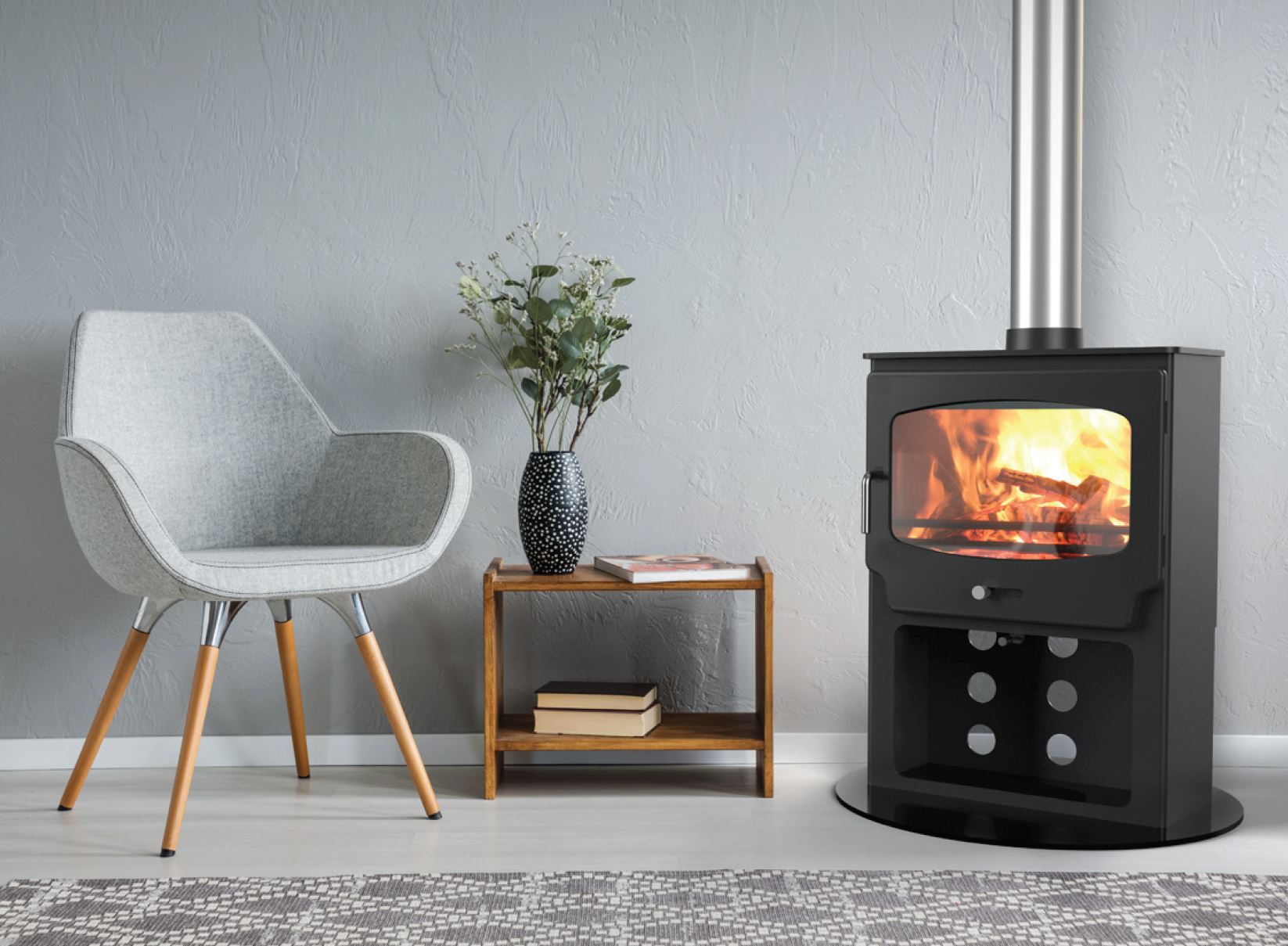

• Height: 600mm / 824mm Tall version
• Width: 592mm
• Depth: 285mm
• Approx weight: 90kg / 120kg Tall version
• Flue Size: 5" (125mm)
• Internal Firebox Width: 455mm
• Internal Firebox Depth: 195mm
• Max Log Size:  17" (430mm)
• Rear to centre of top flue: 135mm
• Floor to centre of rear flue: 467mm
• Distance to Combustibles: 400mm to side walls / 250mm to rear wall
